TX-200 series

DC Voltage Transducer

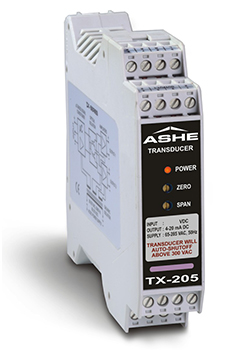

TX-205

PRODUCT : DC Voltage Isolating Transducer
INPUT : mV or V DC (as required)
OUTPUT : 4 to 20 mA DC
ISOLATION : Optical and Galvanic
POWER SUPPLY : 90 to 270 VAC, 50/60 Hz or 20-70 VDC

Temperature Transducer (RTD)

TX-212

PRODUCT : Temperature Transducer
INPUT : RTD Pt-100 Sensor (3-wire)
OUTPUT : 4 to 20 mA DC
ISOLATION : Optical and Galvanic
POWER SUPPLY : 90 to 270 VAC, 50/60 Hz or 20-70 VDC

Temperature Transducer Repeater (RTD)

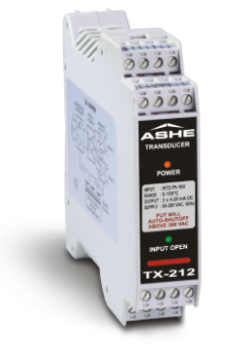

TX-212

PRODUCT : Temperature Repeater (Multiplier)
INPUT : RTD Pt-100 Sensor (3-wire)
OUTPUT : 2x 4 to 20 mA DC
ISOLATION : Optical and Galvanic
POWER SUPPLY : 90 to 270 VAC, 50/60 Hz or 20-70 VDC

Temperature Transducer (Thermocouple)

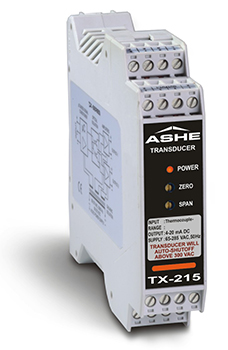

TX-215

PRODUCT : Temperature Transducer
INPUT : Thermocouple J,K,R,S
OUTPUT : 4 to 20 mA DC
ISOLATION : Optical and Galvanic
POWER SUPPLY : 90 to 270 VAC, 50/60 Hz or 20-70 VDC

DC Current Signal Isolator

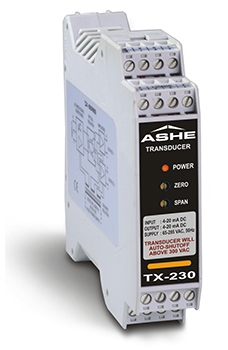

TX-230

PRODUCT : Signal Isolator
INPUT : 4 to 20 mA DC
OUTPUT : 4 to 20 mA DC
ISOLATION : Optical and Galvanic
POWER SUPPLY : 90 to 270 VAC, 50/60 Hz or 20-70 VDC

Signal Isolator Repeater (2 Outputs)

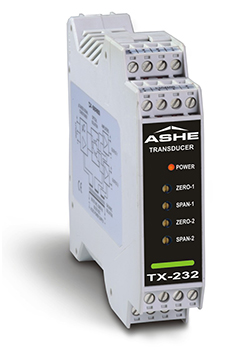

TX-232

PRODUCT : Signal Isolating Repeater
INPUT : 4 to 20 mA DC or 0 to 10 VDC
OUTPUT : Dual output of 4 to 20 mA DC
ISOLATION : Optical and Galvanic
POWER SUPPLY : 90 to 270 VAC, 50/60 Hz or 20-70 VDC

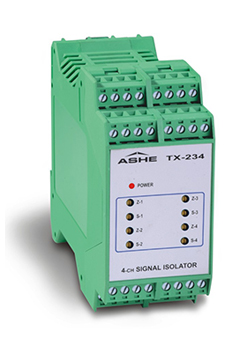

Signal Repeater (4 Outputs)

TX-234

PRODUCT : Signal Isolating Repeater
INPUT : 4 to 20 mA/Resistance/VDC
OUTPUT : 4 outputs of 4 to 20mA/0 to 10 VDC
ISOLATION : Optical and Galvanic
POWER SUPPLY : 90 to 270 VAC, 50/60 Hz or 20-70 VDC

DC Voltage Signal Isolator

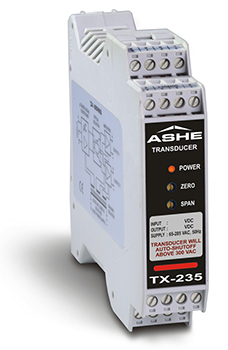

TX-235

PRODUCT : Signal Isolating
INPUT : 0 to 10 VDC or 0 to 10 K-Ohm
OUTPUT : 0 to 10 VDC
ISOLATION : Optical and Galvanic
POWER SUPPLY : 90 to 270 VAC, 50/60 Hz or 20-70 VDC

Resistance Transducer

TX-240

PRODUCT : Resistance Transducer
INPUT : Resistance (0-10 K-Ohm, as reqd)
OUTPUT : 4 to 20 mA or 0 to 10 VDC
ISOLATION : Optical and Galvanic
POWER SUPPLY : 90 to 270 VAC, 50/60 Hz or 20-70 VDC

Tap Position Transducer (2 Outputs)

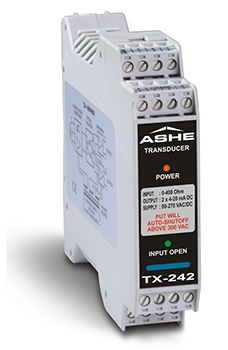

TX-242

PRODUCT : Tap Position Transducer
INPUT : Variable Resistance
OUTPUT : Dual outputs of 4 to 20 mA DC
ISOLATION : Optical and Galvanic
POWER SUPPLY : 90 to 270 VAC, 50/60 Hz or 20-70 VDC

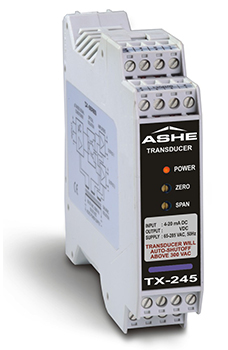

TX-245

PRODUCT : Current to Voltage Transducer
INPUT : 4 to 20 mA DC
OUTPUT : 0 to 10 VDC
ISOLATION : Optical and Galvanic
POWER SUPPLY : 90 to 270 VAC, 50/60 Hz or 20-70 VDC

AC Voltage Transducer

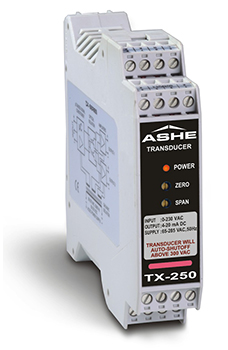

TX-250

PRODUCT : AC Voltage Transducer
INPUT : 0 to 230 VAC (or as required)
OUTPUT : 4 to 20 mA DC
ISOLATION : Optical and Galvanic
POWER SUPPLY : 90 to 270 VAC, 50/60 Hz or 20-70 VDC
