Static Charge Grounding Relay

View datasheet Buy Now

Static Charge Grounding (Earthing Relay) - Resistance based

SGR-250-X

Microcontroller based Intrinsically Safe Earthing Relay for Static Charge grounding of Tank Truck
Detect Line Resistance between Tanker and the Earth Pit Grid.
Detect integrity of Earth grid connection
Allow loading only when all safety conditions are satisfied.
Line Resistance between Earth Pit and Vehicle configurable between 1 to 8 Ohm.
Intrinsically Safe Ex-i certified electronic design.
Weatherproof with IP65 ingress protection.
Explosion-proof die-cast LM6 Ex-d enclosure Class 1 suitable for Gas groups IIA & IIB (optionally Gas group IIC).
Extendable spiral industrial Cable-Clamp accessories

Resistance based Grounding
Single/Dual Probe option
EX-i Intrinsic Safety Certified

View datasheet Buy Now

Static Charge Grounding (Earthing Relay) -Res. + Cap. based Earthing Relay

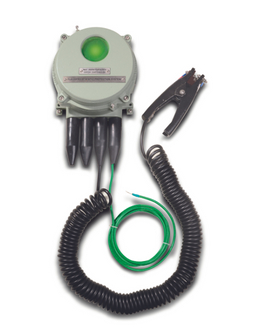

SPS-600

Microcontroller based Intrinsically Safe Earthing Relay
Intelligent Vehicle Recognition system.
Static Charge grounding of Tank Truck for safety in loading and unloading operations.
Detection of Line Resistance between Tanker and the Earth Pit Grid and detection of Capacitance between Tanker and Ground.
Allow loading only when following conditions are satisfied :
Line Resistance between Earth Pit and Vehicle is between 1 to 8 Ohm (configurable)
Capacitance of Vehicle is within specified bandwidth of 2 to 100 nF (configurable).
Intrinsically Safe Ex-i electronic design.
Weatherproof enclosure with IP65 ingress protection.
Explosion-proof die-cast LM6 Ex-d enclosure Class 1 suitable for Gas groups IIA & IIB (optionally Gas group IIC).
Extendable Spiral industrial Cable accessories

Vehicle Recognition system
Resistance+Capacitance mon
EX-i Intrinsic Safety Certified

View datasheet Buy Now

SGR-250 Module

Microcontroller based Intrinsically Safe Earthing Relay for Static Charge grounding of Tank Truck
Detect Line Resistance between Tanker and the Earth Pit Grid.
Detect integrity of Earth grid connection
Detection of Line Resistance between Tanker and the Earth Pit Grid and detection of Capacitance between Tanker and Ground.
Allow loading only when all safety conditions are satisfied.
Line Resistance between Earth Pit and Vehicle configurable between 1 to 16 Ohm.

Vehicle Recognition system
Resistance+Capacitance mon
EX-i Intrinsic Safety Certified

Features

Microcontroller based design.
Intrinsically-Safe Ex-i certified.
Explosion-proof Ex-d certified.
Low cost, high functionality.
Impedance based control action..
Intelligent monitoring of critical parameters.
Two / Five Relay change-over contacts.
Easily configurable, die-cast Aluminum enclosure.
High noise immunity.
Hazardous-area installation in IP65 execution.

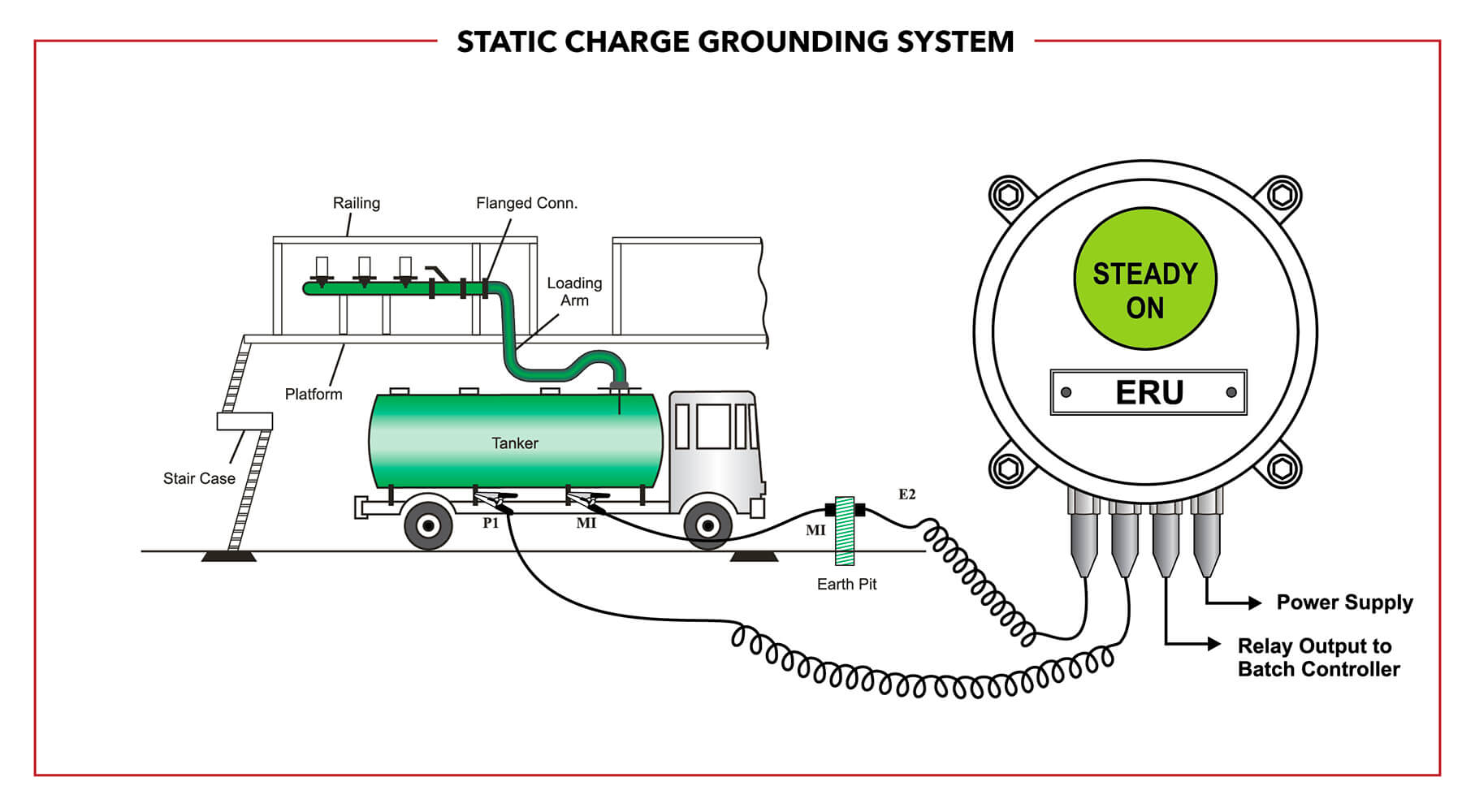

The Static Charge Grounding Relay is a certified Intrinsically Safe product, mounted in a certified explosion-proof enclosure, thus providing a high degree of protection against possible fires or explosions caused by sparking owing to discharge of accumulated static charge on the Tanker body during loading and unloading operations. The instrument acts as an interlock in hazardous area environments, allowing the loading/unloading process to initiate only after satisfactory grounding of static charge on the Tanker body and Loading Arm.
