 How GPS-synchronized current interruption and remote monitoring turn cathodic protection from a box you check into a result you can prove.

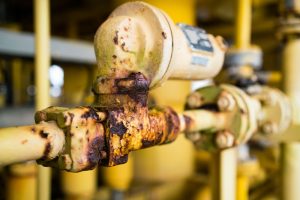

Every buried pipeline, storage tank, and offshore structure is fighting a quiet, continuous battle against electrochemistry. Most of the time, that battle is invisible — right up until the moment it isn’t. By then, the conversation is no longer about maintenance budgets. It’s about leaks, fines, downtime, and headlines.

Cathodic protection (CP) is the proven engineering answer to that battle. But here’s the uncomfortable truth that doesn’t get said often enough in our industry: a cathodic protection system you can’t accurately measure is a cathodic protection system you can’t actually trust. The protection is only half the job. Proving it works — with clean, defensible data — is the other half. And that half is where most operations quietly lose money, time, and confidence.

This article looks at the real problems facing CP operations today, why they persist, and how precision instrumentation closes the gap.

The silent, trillion-dollar threat

Corrosion is not a niche maintenance issue. It is one of the largest recurring costs on the planet. The landmark NACE International IMPACT study estimated the global cost of corrosion at roughly US$2.5 trillion per year — about 3.4% of global GDP — drawing on national studies spanning the United States, India, Japan, the United Kingdom, and Kuwait. The same study found that applying available corrosion-control best practices could save 15–35% of that cost, or US$375–875 billion every year. [1][2]

For pipeline operators, the stakes are sharper still. In the United States alone, the energy transportation network runs to roughly 2.6 million miles of pipeline, much of it aging — analyses of federal incident data indicate a large share of gas transmission lines are more than 45 years old. [3][4] Corrosion remains a leading cause of pipeline incidents, and U.S. regulator PHMSA reports that internal corrosion alone historically accounts for around 60% of corrosion-caused incidents on transmission and gathering pipelines. [5]

The takeaway is simple. Corrosion is expensive, dangerous, and — critically — preventable. Cathodic protection is how we prevent it. The question is whether we can prove our CP systems are doing their job at every point along the asset.

Cathodic protection works — but only if you can prove it

CP performance is judged against well-established criteria. The most widely used, defined in NACE/AMPP SP0169 (Control of External Corrosion on Underground or Submerged Metallic Piping Systems), is a polarized “instant-off” potential of at least −850 mV relative to a copper/copper-sulfate reference electrode. [6][7]

And this is exactly where field reality gets difficult.

When CP current is flowing, the voltage you measure between the structure and a surface reference electrode includes a resistive “IR drop” caused by current passing through the soil. That IR drop makes the structure look better protected than it actually is. To get the true polarized potential, you have to momentarily interrupt the protective current and capture the reading in the instant before the structure depolarizes — the so-called “instant-off” potential. [6][7]

In other words: the single most important measurement in cathodic protection only works if you can switch the current off at a precisely controlled, known instant. Get the timing wrong, and the number you record — the number you base integrity decisions on — is simply wrong.

The hidden failure point: timing

Now scale that up to a real pipeline.

A close interval potential survey (CIPS) or DC voltage gradient (DCVG) survey on a long transmission line involves multiple rectifiers and multiple survey crews working across tens or hundreds of kilometres at the same time. For the instant-off readings to be valid, every rectifier influencing the survey area must interrupt its current at exactly the same moment. [7][8]

If the timer at Station 1 switches at 12:00:00.000 and the timer at Station 50 switches at 12:00:00.003, the readings taken between them are contaminated by the current that’s still flowing from the unsynchronized source. A few milliseconds of drift is enough to corrupt the data. And corrupted survey data is worse than no data — it produces false confidence, masks under-protected segments, and can send crews back into the field to repeat weeks of work.

This is the quiet productivity drain in CP operations: not the cost of the instruments, but the cost of re-doing surveys because the timing wasn’t trustworthy.

The visibility gap

The second structural problem is access. Traditional CP timers are local, dumb devices. To know whether a rectifier is running, retrieve logs, or change a setting, an engineer has to physically drive to the station. Across a national pipeline network — or to a remote, unmanned, or offshore site — that is an enormous operational burden, and it forces a fundamentally reactive posture. You find out about a CP failure during the next scheduled visit, which might be weeks after corrosion started accelerating.

Modern integrity programs are moving the other way: toward continuous, remote, real-time visibility that lets teams act on problems the day they appear, not the quarter they’re discovered. [8]

The solution: atomic-clock precision and total visibility

The fix for both problems is precision instrumentation built around two ideas: GPS-synchronized current interruption and remote, cloud-connected monitoring.

GPS solves the timing problem elegantly. Every GPS receiver on Earth has access to the same atomic-clock time reference. If every current-interrupt timer locks to GPS, then every rectifier across a 500 km pipeline switches in perfect unison — regardless of how far apart the crews are. The IR-drop error is removed cleanly, and instant-off readings become genuinely comparable from one end of the asset to the other.

At Sparktech Automation, this is the core design principle behind both of our cathodic protection instruments — the AC-82G and the CP-RMU — each of which delivers ±2 ppm GPS timing accuracy and supports survey methodologies consistent with NACE/AMPP SP0169 and SP0207, including CIPS and DCVG. The difference between the two comes down to scale, connectivity, and how much remote visibility your operation demands.

AC-82G — the field workhorse

The AC-82G is a panel-mount, GPS-synchronized current interrupt timer purpose-built for cathodic protection surveys and standalone CP sites. It’s the reliable, no-nonsense instrument CP engineers want in the field:

• ±2 ppm GPS atomic-clock synchronization for multi-site survey accuracy
• Programmable On/Off cycles from 1 to 9,999 seconds, with automatic night-sleep and daytime operation
• 16×2 OLED display and an 8-key membrane keypad for fast, glove-friendly field configuration
• Lithium battery-backed real-time clock and NVRAM permanent program storage — it never loses its time or its settings
• Remote start/stop and reset facility
• Flexible power: 110/230 VAC or 24/12 VDC
• Rugged industrial ABS enclosure, IP66, 0–55 °C operating range, backed by a 2-year warranty

Where it adds value: standalone rectifier stations, smaller installations, and field survey crews who need atomic-clock synchronization without the cost or complexity of a networked platform. It eliminates the single biggest cause of wasted survey work — timing drift — at the instrument level.

CP-RMU — cloud-connected monitoring at network scale

The CP-RMU takes everything the AC-82G does on timing and adds a full remote monitoring platform on top of it. It combines GPS-synchronized current interruption with connectivity and telemetry, giving engineers complete visibility over every CP station from anywhere in the world:

• ±2 ppm GPS interruption plus a full web dashboard to configure, monitor, and report from any device
• WiFi / GSM connectivity with MQTT telemetry, plus RS485 Modbus-RTU for seamless SCADA / DCS integration
• 100,000-entry onboard data logging with USB extraction
• SMS and email alarm alerts to supervisors on fault or tamper events
• Live GPS location tracking of each unit
• Li-ion battery backup that survives mains power failure, with worldwide GMT correction
• DIN-rail mounting and a 20×4 LCD with 8-key interface

Where it adds value: large pipeline networks, remote and unmanned stations, and any operation that needs to move from reactive site visits to proactive, centralized integrity management. A failing rectifier triggers an alert in minutes — not at the next quarterly inspection. The travel, labour, and downtime savings compound across every site you stop having to physically visit.

Which instrument fits your operation?

The bottom line

Cathodic protection is one of the highest-return investments in asset integrity — but only when its performance can be measured and proven. The economics of corrosion make the case on their own: with best practices, the industry could be saving hundreds of billions of dollars a year. [1][2] A meaningful slice of that opportunity lives in the quality of the data operators collect about their own CP systems.

Precision instrumentation is how you capture that opportunity. GPS-synchronized interruption turns survey data from “probably fine” into defensible, audit-ready evidence. Remote monitoring turns CP management from a reactive chore into a proactive program. And both translate directly into fewer repeat surveys, fewer truck rolls, faster fault response, cleaner compliance, and — most importantly — assets that last longer and fail less.

You can’t stop electrochemistry. But you can measure it precisely, prove your protection is working, and act before corrosion ever becomes a headline.

Sparktech Automation designs and manufactures precision cathodic protection instruments — including the GPS-synchronized AC-82G current interrupt timer and the cloud-connected CP-RMU remote monitoring unit — for oil & gas, water, marine, and industrial operators across North America, the Middle East, and Europe. To request a datasheet or quote, contact us at info@sparktechautomation.ca or visit sparktechautomation.ca/cathodic-protection.
